Product Overview:

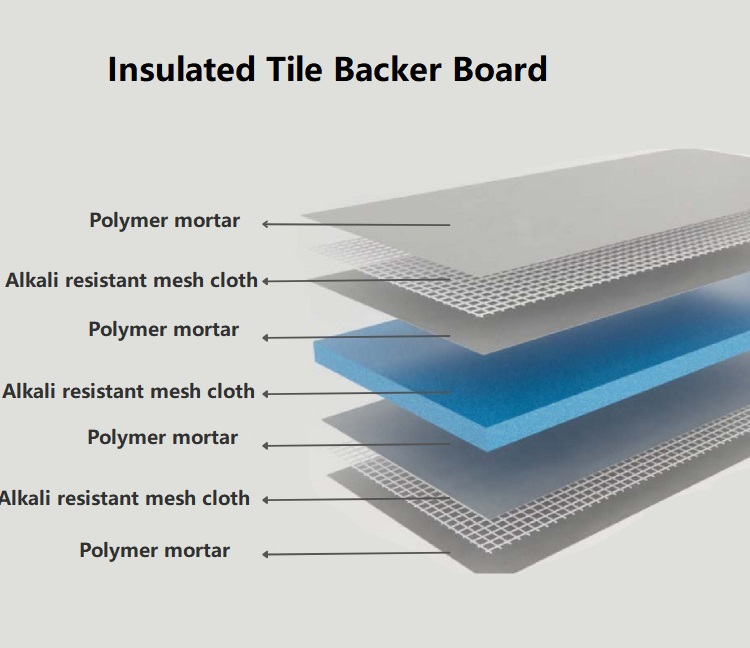

HKWELL Tie Backer Board is the innovative alternative to traditional cement backers. It's HCFC-free waterproof XPS core, fiberglass reinforced and cement coating gives the panel strength.

vapor retardant Making HKWELL pane is the perfect choice for a variety of interior and exterior applications, such as the inter layer to wall or floor and thermal insulation board in underfloor heating system.

Benefits:

1.100% waterproof, made of HCFC-free XPS foam

2. High-rigidity and durability.

3. Close bond to any tiling walls or floors.

4.Available in various thickness and size

5.Compatibility with multiple substructures.

6. Thermal insulation for saving energy bills.

7. Vapor retardant against mildew.

8.Lightweight, easy to handle and cut with utility knife



Technical Performance of HKWELL Tile Backer Board:

Technical performance



Property	Assessed to	Rating
XPS foam Density	DIN53420	33±0.02KG/m³
Therma Conductivity	EN12167	0.033W/m.k
Compressive Strength(10%deflection)	EN826	300Kpa(30  tonnes/m³)
Flexural Strength	ASTM C203	0.3±0.02Mpa
Water Absorption (2-days immersion)	ISO2896	0.2%by volume
Water Absorption (Capillary)	ISO2896	Zero
Water Vapour Diffusion Resistivity(u)	DIN52615	100-225μ
Water Vapour Permeability	ASTME-96	0.028ng/Pa.m.s
Maximum Tile Loading Weight	CREAN121107	62kg/m²
Flammability	EN13501	Class E
Impact Sound Redcution	BS-ISO10140	dLw=21
EU controlled substances	N/A	None

Applications:

1.Wall and floor insulation for interior and exterior.

2.Under-floor heating.

3.Waterproofing and insulating projects for wet areas such as bathroom, kitchen, swimming pool, spa.

4.Enclosures for bathtubs, columns, steps and water pipes.

Intrusions：

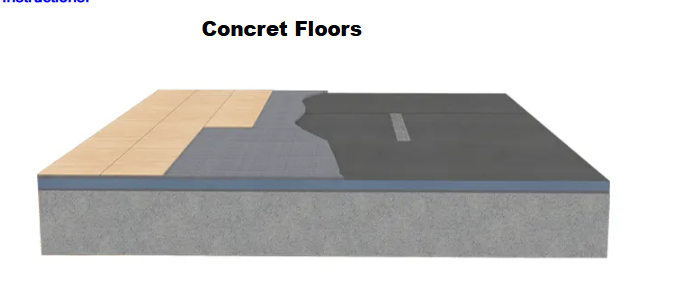

1. Clean the solid "non-deformable" floor free from dust, dirt and other contamination.

2 Flexible tile adhesive combed through. with a notch trowel, will provide a ribbed bed on which LUX boards will be laid.

3.Push LUX boards onto the floor, all boards are dislocation arrangement4. Apply the boards with self-adhesive mesh and plaster the flexible adhesive above it For high-demanding waterproof areas, a reinforced waterproof tape and coating is requested5. Tilling can be started once the boards are bonded on the floor tightly.

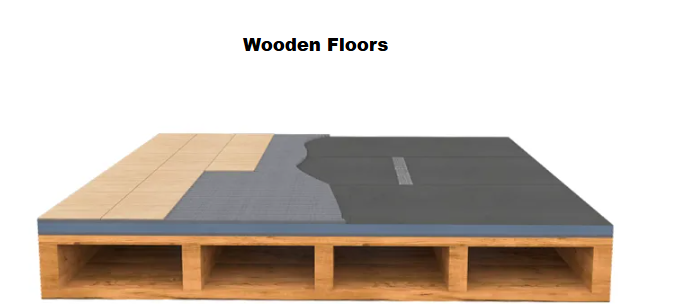

Wooden Floors

1. Clean the wood floor free from dust.dirt and other contamination.
2. Flexible tile adhesive, combed through with a notch trowel, will provide a ribbed bed on which LUX boards will be laid.
3. After the flexible and washers to fix the board to the wood floor at least 300mm
4. Apply the boards joint with self-adhesive mesh. it. For high-demanding waterproof areas, a reinforced waterproof tape and coating is requested the flexible adhesive
5. .Tilling can be started once the: tightly



HKWELL Board is an innovative carpet lining for ceramic tiles, wooden floor and parallel to wall framing applied in bathroom, kitchen, underfloor heating system.ect. The board is lightweight, waterproof, thermal insulation and quickly easy to installation. Feature: Waterproof, lightweight and insulated Coating: Cement & Fiberglass mesh Material: XPS+fiberglass Mesh+cement Mortar Color: Blue Size: Normal size and accept customization Shape: Can be cut to any shape Application: Wet room, under-floor heating, etc Working Life:15-20 years quality guarantee
