PVT component parameters:
| Parameters of PVT photovoltaic thermal module | |||
| Total power | 1700W | Core material | Stainless Steel |
| Thermal power | 1150W | heat exchange area | 2.56 ㎡ |
| Glass type | Ultra-white low iron cloth tempered glass | heat exchange medium | Special antifreeze for PVT |
| Glass size | 2272*1128*3.2mm | Heat transfer caliber | 4 min outer wire |
| Product size | 2279*1134*35mm | Working temperature | -40 ℃ ~ 85 ℃ |
| Border Material | Aluminum alloy | Thermal insulation material | EPP Insulation |
| Working pressure | <0.2Mpa | Component Weight | 45KG |
| IEC61215 ，IEC61730 TUV，CE IS0 9001:2015 1S0 14001:2015 1S0 45001:2018 |
|||
PVT component characteristics:
PVT photovoltaic/photothermal integration application, is the use of solar PVT modules in power generation at the same time to provide hot water or heating, PVT modules and multi-energy system coupling a set of efficient cogeneration system, can solve the user electricity/heat two needs.
Photovoltaic/thermal integration:
Set photovoltaic, light and heat, air source, heat pump, new energy in one, while meeting the needs of electricity, hot water, heating and so on.
Space Saving:
Under the condition of limited space, power generation and heat supply are realized at the same time.
Comprehensive product and certification system:
Comprehensive product and system certification, more stringent internal testing than industry standards.
Improve the efficiency of photovoltaic power generation:
The working temperature of the photovoltaic module is higher under good irradiation, and the temperature of the photovoltaic module plate can be reduced by the back full flow channel system, thus improving the power generation efficiency by 8-15%.

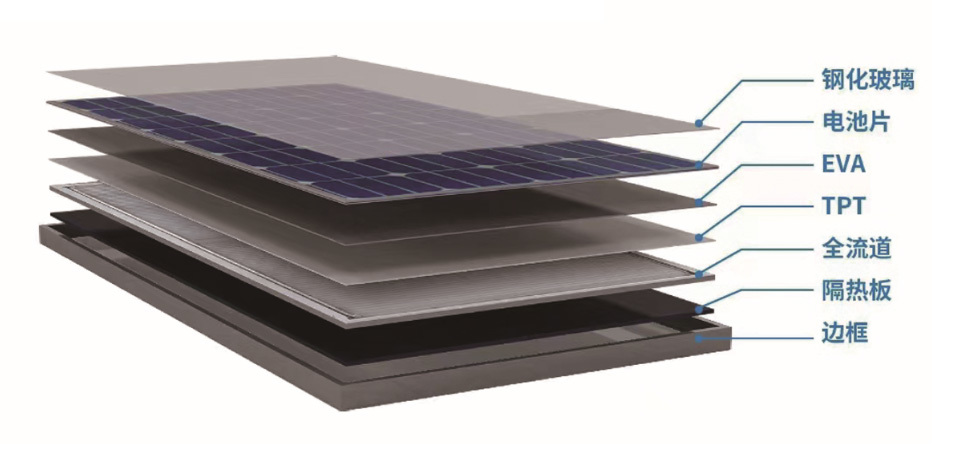

Schematic diagram of "laminated without cracking" of PVT photovoltaic thermal module
PVT product testing
PVT Photovoltaic Thermal Module Application Diagram
PVT Photovoltaic-Photothermal Module
